  • Name: QT10-15 block machine
  • Number: 001

WANTE MACHINERY WANTE BRAND

QT10-15 Fully-auto hydraulic cheap brick making machine , paving block machine price

Parameters

WANTE MACHINERY WANTE BRAND

QT10-15 Fully-auto hydraulic cheap brick making machine , paving block machine price

 parameters :

QT10-15 block machine

Overall size

3500x2220x2850mm

Shaping cycle

15-18 seconds

Pallet size

1300x900x30mm (bamboo)



1300x900x30mm (plastic)

Vibration frequency

Max.5500 R/Min

Electricity

380V/220V/ (adjustable)

Vibration force

120KN

Total weight

9800 KGS



Detailed Images

WANTE MACHINERY WANTE BRAND

QT10-15 Fully-auto hydraulic cheap brick making machine , paving block machine price

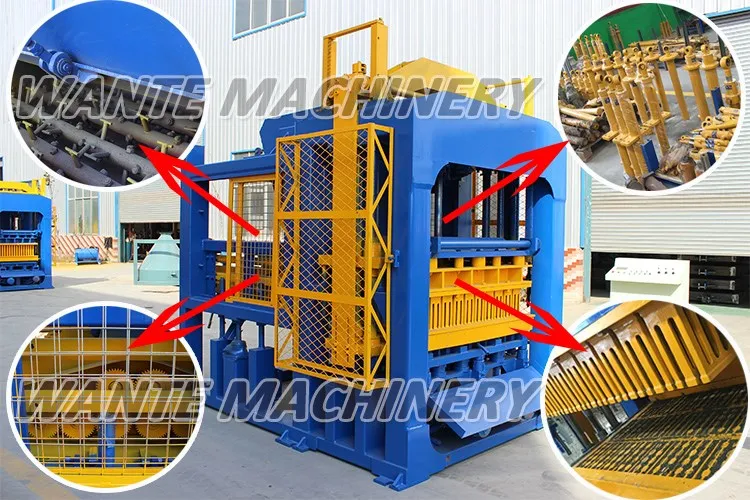

QT10-15 block machine showing :

360 scatter mixer , greatly inproves the density and intensity of blocks.
Hydraulic system: hydraulic spare parts be ordered according our block machine characteristic from Taiwan.
All material and spare parts selected according international CE standard , Carbon dioxide pertection weldig will assure line stable running.
We choose MITSUBISHI / SIEMENS programmable logic controller ( PLC)
Mold: newest heat treatment device assure longer mold life.





WANTE MACHINERY WANTE BRAND

QT10-15 Fully-auto hydraulic cheap brick making machine , paving block machine price

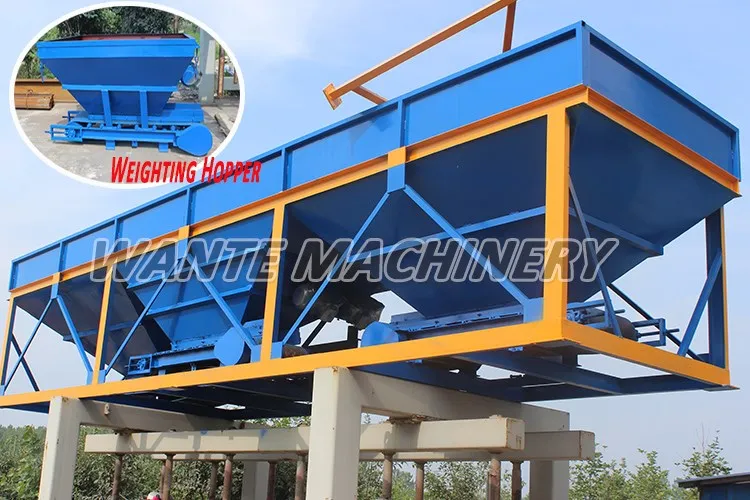

PLD1200 Batching machine showing :

Weighting accuracy is guaranteed by the high-precsion weighting sensor , and the warp ratio is within 1%.
The electronic weighting microcomputer control , digital dispaly ,wired remote control operatio , has the advantages of accurate weighing , high precision , high speed, strong control function .



WANTE MACHINERY WANTE BRAND

QT10-15 Fully-auto hydraulic cheap brick making machine , paving block machine price

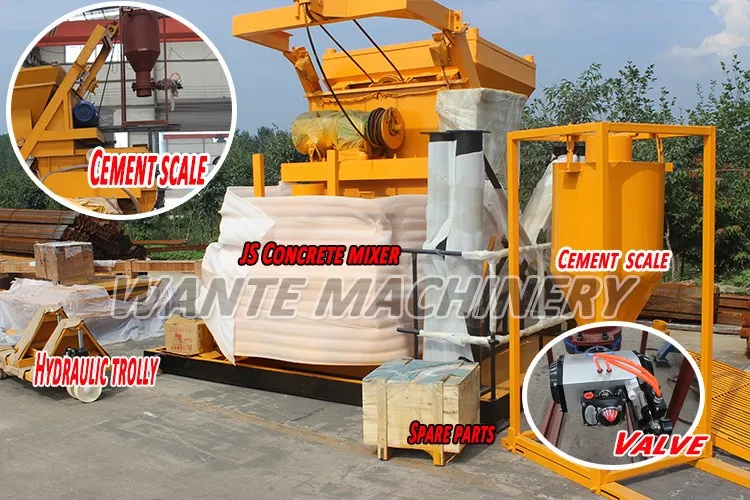

Conctete mixer * cement scale showing :

Automatic feeding material  ,automatic seld-clocking ,automatic adding water
Double mixture axes , the speed of mix will beapproved to a large degree, and the large particles can easily be stirred.
We use 2.5cm thickness pad to prevent the body steel get hyrt, and customer only neeed to change the iron pad.
Cemen scale connects mixer wirh screw , certain weight of cement will fall down inside of mier , and the ratio of every kind of raw material will be same with what we have settled.
Swithes and motors: Janpan Omran / Siemens motor.

WANTE MACHINERY WANTE BRAND

QT10-15 Fully-auto hydraulic cheap brick making machine , paving block machine price

stacker machine showing :

Use frequrncy conversion technology enables the stacker to move up and down very smoothly , greatly protect the wet blocks.
Motor connected with speed reducer, to make power , and drive the fer moving , therebu lead the system to move.
Motor drives the chain sprocket rotation , thereby lifting chain ,and pallets ,it is stopped buy inductor. the motor has the function of brake , can stop at any time.
4 layers for hollow blocks & 6-7 layers for paver.

Capacity & block

WANTE MACHINERY WANTE BRAND

QT10-15 Fully-auto hydraulic cheap brick making machine , paving block machine price

 capacity table :



No.

Block size

Pcs/mould

Pcs/hour

Pcs/day

1

400x200x200mm

10

2530

21600

2

400x150x200mm

14

2860

24500

3

400x100x200mm

16

3450

28600

4

200x100x60mm

24

4320

34560

5

200x163x60mm

16

2880

23040





block samples

WANTE MACHINERY WANTE BRAND

QT10-15 Fully-auto hydraulic cheap brick making machine , paving block machine price

---- By changing molds , QT10-15 can make hollow, solid, paver and curbstone

WANTE MACHINERY WANTE BRAND

QT10-15 Fully-auto hydraulic cheap brick making machine , paving block machine price

Block mold showing :

Use heat treatment on mold and main parts of the machines , especially the frame of the main machine, it is made of high-intensity steel.
Line cutting , more accurate ,more professional.
Lifetime are greatly improved , able to use more than 120000 times
